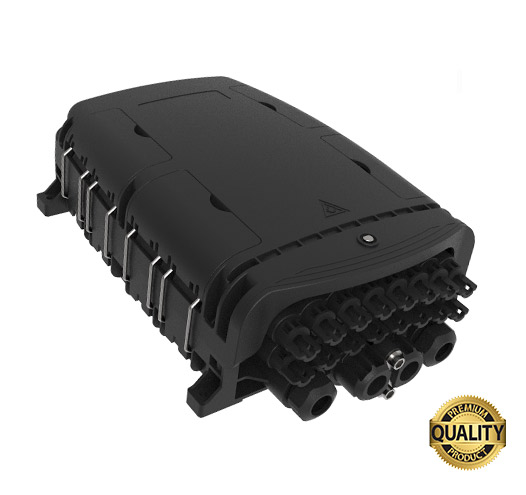

16-core IP68 optical fiber distribution box, model PROBOX68-16A, for secure FTTH cable termination and splitting.
Need a custom spec or OEM branding on this product? Talk to our engineering team.
Every batch, before shipment
Manufacturing
Custom specs and branding
Americas, Europe and Africa
The PROBOX68-16A Optical Fiber Cable Distribution Box from Fibramérica is a high-performance enclosure designed for the termination, fusion, and distribution of fiber optic cables in FTTx networks. With a rugged IP68-rated construction, it offers exceptional protection against water, dust, and environmental wear, making it ideal for outdoor or harsh installation environments.
Manufactured from durable PP or PC+ABS materials, this model features an advanced structural design for easy operation and efficient fiber routing. It supports multiple installation methods — wall-mounted, pole-mounted, or aerial — and accommodates various cable configurations with one oval entry for feeder cables, two branch cable entries, and up to 16 household connections.

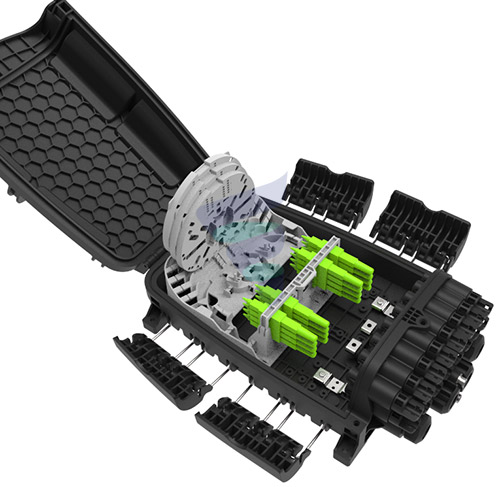

The PROBOX68-16A offers flexible capacity options, supporting up to 72 fusion splices and compatibility with multiple PLC splitters (1×2, 1×4, 1×8, and 1×16) in specific splice tray configurations. Designed to simplify field deployment, it integrates secure cable clamping, splice tray stacking, and organized distribution management in a single, robust housing.
Perfect for ISPs, telecom operators, and contractors building reliable FTTH networks, this enclosure ensures performance stability, ease of maintenance, and long-term durability.
IP68-rated waterproof, dustproof, and moisture-proof design.
Supports up to 72 fusion splices depending on tray type.
Compatible with multiple PLC splitters (1×2, 1×4, 1×8, 1×16).
PP or PC+ABS UV-resistant construction.
Flexible cable entry options: 1 oval, 2 branch, and 16 household ports.
Multiple installation methods: wall, pole, or aerial.
Neutral salt spray resistance for 48 hours.
Flammability class HB (customizable).
| Specification | Details |
|---|---|
| Model | PROBOX68-16A |
| Material | PP or PC+ABS |
| Dimensions (mm) | 378 × 255 × 116 |
| Installation Hole Position (mm) | 215 × 266 × 239 |
| Color | Black (customizable) |
| Cable Entry | 1 oval, 2 branch, 16 household |
| Max Fusion Capacity | Up to 72 fibers (depending on tray) |
| Splitter Support | 1×2, 1×4, 1×8, 1×16 |
| Max Cable Diameter | Φ15 mm |
| Max Branch Hole Diameter | Φ12 mm |
| Cable Outlet Size | 2×3 mm to Φ7 mm |
| Protection Level | IP68 |
| Flammability | HB (customizable) |
| Neutral Salt Spray Test | 48 hours |
Our engineering team can confirm compatibility, custom specs and OEM branding options.
