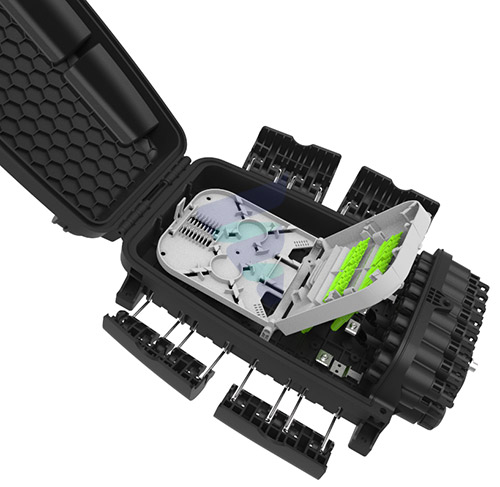

16-core IP65 optical fiber distribution box, model PROBOX68-16B, for secure FTTH terminations and cable management.
Need a custom spec or OEM branding on this product? Talk to our engineering team.
Every batch, before shipment
Manufacturing
Custom specs and branding
Americas, Europe and Africa
The PROBOX68-16B Optical Fiber Cable Distribution Box from Fibramérica is a reliable solution for terminating, splicing, and distributing fiber optic cables in FTTx networks. Designed for efficiency, it combines robust protection with practical installation features, ensuring long-term performance for both aerial, pole-mounted, and wall-mounted applications.
Made from high-quality PP or PC+ABS materials, the enclosure offers resistance to moisture, dust, and aging while maintaining a sleek and functional design. With an IP65 protection rating, it provides effective environmental shielding in a wide range of installation conditions, making it a versatile choice for both urban and rural network deployments.
Equipped with one oval feeder cable entry, two branch entries, and 16 household connections, the PROBOX68-16B allows neat and organized cable routing. It is built for maximum capacity of 16 cores, with compatibility for cables up to 15mm in diameter and bifurcation holes up to 12mm.
Ideal for ISPs, telecom operators, and contractors, this model offers a durable, low-maintenance, and cost-effective solution for FTTH access networks.
IP65-rated enclosure for dust and moisture protection.
Supports up to 16 cores.
One oval cable entry, two branch entries, and 16 household ports.
PP or PC+ABS construction, UV-resistant.
Supports aerial, pole-mounted, or wall-mounted installation.
Cable compatibility up to 15mm diameter.
Compact, efficient design for FTTx terminations.
| Specification | Details |
|---|---|
| Model | PROBOX68-16B |
| Material | PP or PC+ABS |
| Dimensions (mm) | 378 × 255 × 116 |
| Installation Hole Position (mm) | 215 × 266 × 239 |
| Color | Black (customizable) |
| Cable Entry | 1 oval, 2 branch, 16 household |
| Max Capacity | 16 cores |
| Max Cable Diameter | Φ15 mm |
| Max Branch Hole Diameter | Φ12 mm |
| Cable Outlet Size | 2×3 mm to Φ7 mm |
| Protection Level | IP65 |
| Flammability | HB (customizable) |
| Neutral Salt Spray Test | 48 hours |
Our engineering team can confirm compatibility, custom specs and OEM branding options.
