16-core IP65 optical fiber distribution box, model PROBOX68-16C, for secure and organized FTTH terminations.
Need a custom spec or OEM branding on this product? Talk to our engineering team.
Every batch, before shipment
Manufacturing
Custom specs and branding
Americas, Europe and Africa

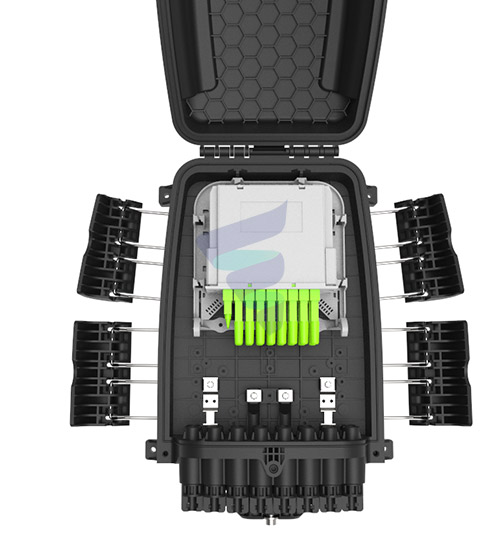

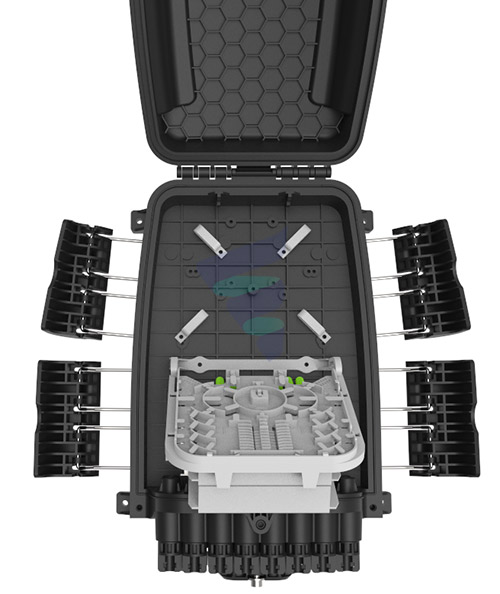

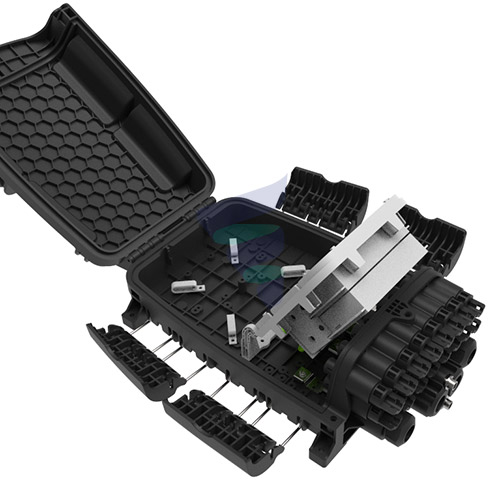

The PROBOX68-16C Optical Fiber Cable Distribution Box from Fibramérica is a robust and versatile enclosure designed for terminating, splicing, and distributing fiber optic cables in FTTx networks. With high mechanical strength and reliable environmental protection, it is an excellent solution for aerial, pole-mounted, or wall-mounted installations.
Made from durable PP or PC+ABS materials, the PROBOX68-16C provides resistance to moisture, dust, and UV damage. Its IP65-rated design ensures consistent performance under varied weather conditions, offering reliable fiber management for urban and rural deployments.
Equipped with one oval cable entry, two branch entries, and 16 household ports, the enclosure offers organized cable routing and optimal space utilization. It supports a maximum capacity of 16 cores, with compatibility for feeder cables up to 15mm in diameter and bifurcation holes up to 12mm.
Designed for ISPs, telecom operators, and installation contractors, the PROBOX68-16C delivers long-lasting durability, flexible installation options, and efficient network protection in FTTH systems.
IP65-rated protection against dust and moisture.
Supports up to 16 fiber cores.
One oval feeder entry, two branch entries, and 16 household ports.
Made of UV-resistant PP or PC+ABS material.
Cable diameter compatibility up to 15mm.
Multiple installation options: wall, pole, aerial.
Compact and durable design for FTTx networks.
| Specification | Details |
|---|---|
| Model | PROBOX68-16C |
| Material | PP or PC+ABS |
| Dimensions (mm) | 378 × 255 × 116 |
| Installation Hole Position (mm) | 215 × 266 × 239 |
| Color | Black (customizable) |
| Cable Entry | 1 oval, 2 branch, 16 household |
| Max Capacity | 16 cores |
| Max Cable Diameter | Φ15 mm |
| Max Branch Hole Diameter | Φ12 mm |
| Cable Outlet Size | 2×3 mm to Φ7 mm |
| Protection Level | IP65 |
| Flammability | HB (customizable) |
| Neutral Salt Spray Test | 48 hours |
Our engineering team can confirm compatibility, custom specs and OEM branding options.
