FAB-GJFJ8V/H indoor zipcord fiber cable with figure-8 flame-retardant design and aramid strength, ideal for jumpers and pigtails.
Need a custom spec or OEM branding on this product? Talk to our engineering team.
Every batch, before shipment
Manufacturing
Custom specs and branding
Americas, Europe and Africa

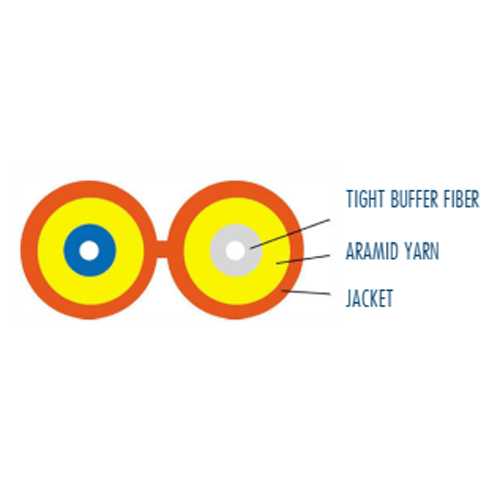

The FAB-GJFJ8V/H is a high-performance indoor zipcord fiber optic cable, designed for duplex interconnect applications. It features Ø900 µm or Ø600 µm flame-retardant tight-buffered fibers as the transmission medium, reinforced with aramid yarn to enhance tensile strength and durability during installation and operation.
Its distinctive figure-8 structure allows for easy separation and branching, making it ideal for optical jumpers, pigtails, and interconnections between devices or communication equipment. The cable is finished with a PVC or LSZH (Low Smoke Zero Halogen) outer jacket, offering excellent resistance to flame, water, UV radiation, and corrosion, while also being safe for indoor environments.
The all-dielectric construction ensures immunity to electromagnetic interference, making it suitable for sensitive electronic and telecom environments. Certified to YDff 1258.2-2003, ICEA-596, GR-409, and IEC60794-2-10/11 standards, it is approved for OFNR and OFNP applications in riser and plenum spaces.
This cable is ideal for structured cabling in data centers, telecom facilities, and enterprise networks requiring flexibility, safety, and high optical performance.
Ø900 µm or Ø600 µm flame-retardant tight-buffered fibers
Aramid yarn for superior tensile strength
Figure-8 jacket for easy branching and installation
LSZH or PVC outer sheath for indoor safety and protection
Excellent flame, water, UV, and corrosion resistance
All-dielectric structure immune to EMI
UL rated for OFNR and OFNP installations
| Specification | Details |
|---|---|
| Model | FAB-GJFJ8V/H |
| Cable Diameter | Ø4.0×2.0 ± 0.2 mm / Ø6.0×3.0 ± 0.2 mm |
| Cable Weight | 6.0 – 15.0 kg/km |
| Fiber Diameter | 900 ± 50 µm |
| Tensile Strength (Long/Short) | 120/200 N or 160/300 N |
| Crush Resistance (Long/Short) | 200/1000 N/1000mm |
| Bending Radius (Dynamic/Static) | 50 / 30 mm |
| Outer Jacket | PVC or LSZH |
| Standards | YDff 1258.2-2003, ICEA-596, GR-409, IEC60794-2-10/11, UL OFNR/OFNP |
FAB-GJFJ8V/H, zipcord fiber cable, indoor duplex cable, figure 8 fiber, tight-buffered fiber optic cable, LSZH fiber cable, flame-retardant optical cable
